WORLD CLASS SUPER MINI U17-3

KUBOTA U17-3

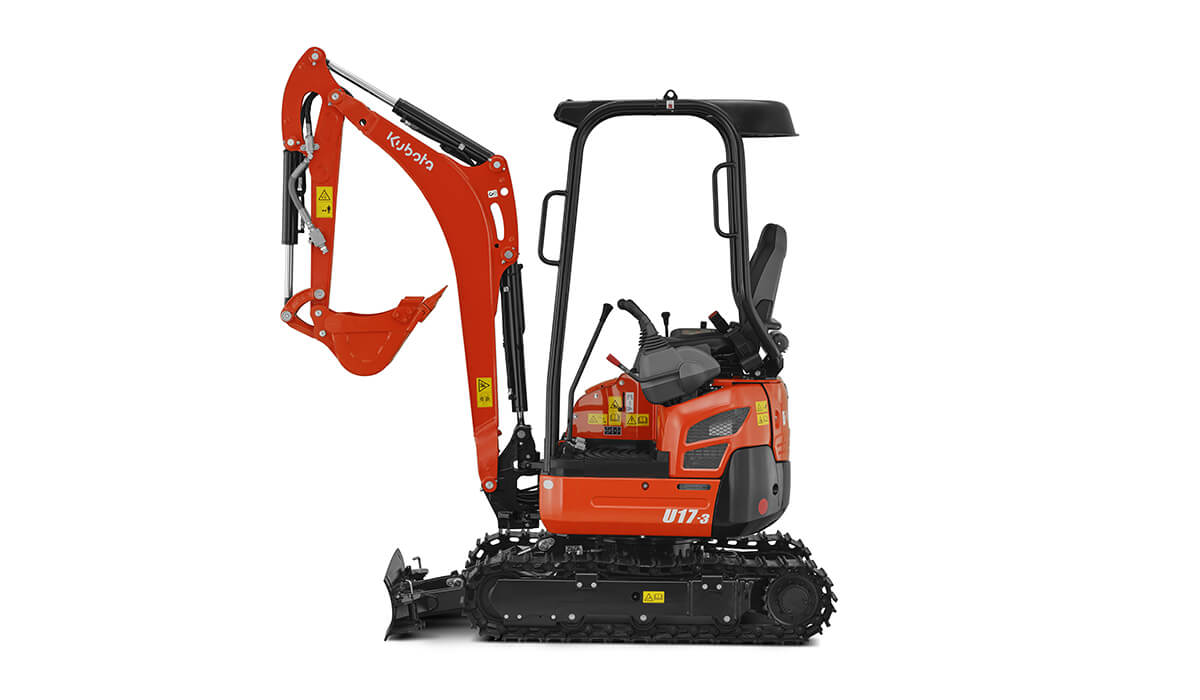

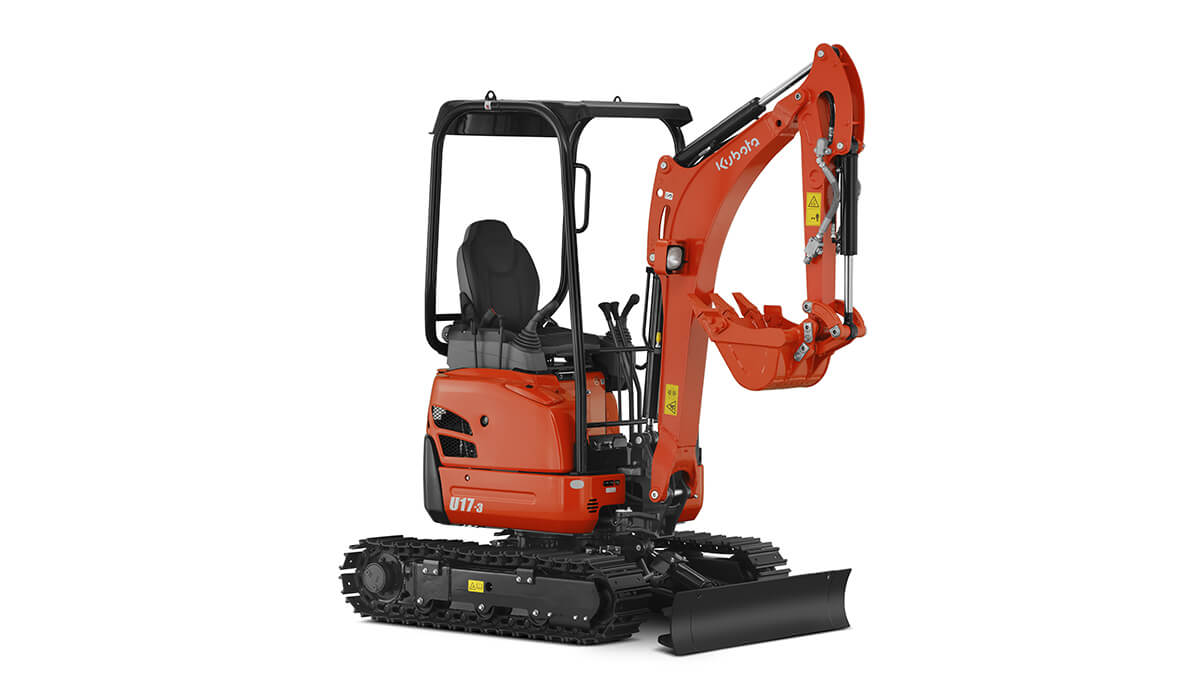

WORLD CLASS SUPER MINI U17-3 (360 degree view)

HORSE POWER

16HP

DIGGING DEPTH

2310MM

WEIGHT

1725KG

SPECIFICATION

MODEL			U17-3
BUCKET CAPACITY			0.04 m3
STD. BUCKET WIDTH: (with/without cutting blade)			450 / 400 mm
MACHINE WEIGHT			1725 kg
Operating weight (Including operator weight: 75kg)			1800 kg
Dimensions (In transport condition)	Overall length		3545 mm
	Overall height		2340 mm
	Overall width		990 / 1240 mm
	Min. ground clearance		150 mm
ENGINE	Model		Kubota D902-E3-BH-1
	Total displacement		898 cc
	Rated output (SAE J1995 gross) kW (HP) / rpm		12.0 (16.1) / 2300
Working Range	Max. digging height		3540 mm
	Max. dumping height		2440 mm
	Max. digging depth		2310 mm
	Max. vertical wall digging depth		1910 mm
	Max. digging radius		3900 mm
	Boom swing (left/right)		65 / 58 deg
	Min. turning radius (with swing)		1440 (1210) mm
	Min. tail turning radius		620 mm
	Max. breakout force (bucket)		15.2 (1545) kN (kgf)
Track type			Steel
Track width			230 mm
Travel section	Crawler length		1585 mm
	Tumbler distance		1230 mm
	Travel speed (1st/2nd gear)		1.9 / 3.9
	Max. climbing angle		30 deg
Swing speed			9.1 rpm
Blade	Width		990 / 1240 mm
	Height		265 mm
	Max. lift above ground/drop below ground		280 / 190 mm
Hydraulic pump type			Variable pump x 2 + gear pump x 1
Swivel motor type			Orbit motor
Travel motor type			Hydraulic piston motor: 2F
Fuel tank capacity			19 L

• The company reserves the right to change the specifications without notice. The product information is for descriptive purpose only.

• Please contact your local Kubota dealer for warranty information. For complete operational information, the operator's manual should be consulted.
