FEATURES
| Zero Tail SwingKubota's zero-tail swing always keeps the tail of the mini excavator within track-width when swivelling, enabling operation in tight and confined spaces.
|
| Boom SwingKubota's boom-swing allows direct digging close to a wall or building without repositioning the mini-excavator
|
| 2-Speed Travel SwitchBy placing the 2-speed travel switch on the dozer lever, dozing operations can be done faster and easier
|
| Third Line Hydraulic ReturnWhen working with one-way hydraulic attachments, such as a breaker, the standard third-line hydraulic return system allows oil to flow directly back to the tank without running through the control valves.
|
| Clean Running KUBOTA EnginePowerful and dependable, U50-5S's diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency.
|
| Digital PanelThe user-friendly digital panel features one-touch button operation to view the time, hour meter and tachometer. Warning lamps with code numbers on the display will alert you in case of emergencies such as overheating, hydraulic problems or low battery.
|
| Wide Operator RoomWith the comfortable space and A/C, the operator can fully commit themselves to the work at hand. This benefit lowers operator fatigue and enhances productivity in many work environments.
|
| Excellent All Round VisibilityWhen at work, good visibility is important for operation. The Kubota cabin provides good visibility for maximum efficiency.
|
SPECIFICATION| MODEL | U50-5S | | BUCKET CAPACITY | 0.16 | | STD. BUCKET WIDTH: (with/without cutting blade) | 650 / 600 mm | | MACHINE WEIGHT | Canopy (rubber/steel crawler) | 4705 / 4790 kg |
|---|
| Cabin (rubber/steel crawler) | 4780 / 4865 kg | OPERATING WEIGHT
(Including operator weight: 75kg) | Canopy (rubber/steel crawler) | 4780 / 4865 kg |
|---|
| Cabin (rubber/steel crawler) | 4855 / 4940 kg | Dimensions
(In transport condition) | Overall length | 5510 mm |
|---|
| Overall height | 2540 mm | | Overall width | 1960 mm | | Min. ground clearance | 320 mm | | ENGINE | Model | Canopy | Kubota V2203-M-E3-BH-BR2 |
|---|

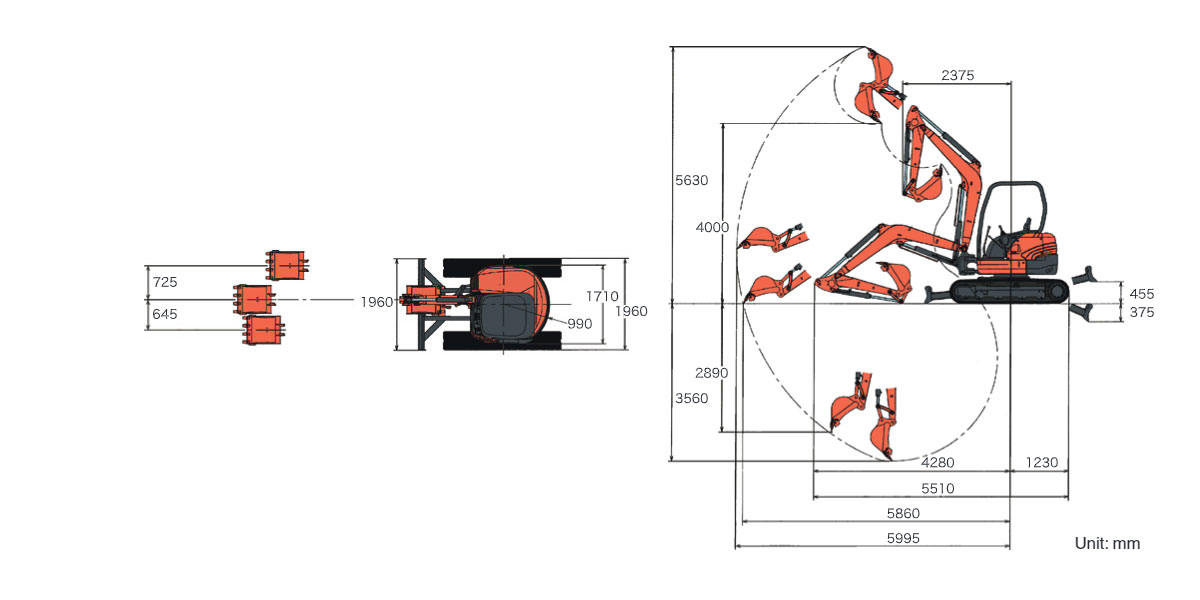

| Cabin | Kubota V2203-M-E2-BH-BR1 | | Total displacement | 2197 cc | | Rated Output | Canopy kW (HP) / rpm | 28.8 (38.6) / 2250 | | Cabin kW (HP) / rpm | 28.5 (38.2) / 2250 | | Working Range | Max. digging height | 5630 mm |
|---|
| Max. dumping height | 4000 mm | | Max. digging depth | 3560 mm | | Max. vertical wall digging depth | 2890 mm | | Max. digging radius | 5995 mm | | Boom swing (left/right) | 70 / 50 deg | | Min. turning radius (with swing) | 2375 (1875) mm | | Min. tail turning radius | 990 mm | | Max. breakout force (bucket) | 36.5 (3720) kN (kgf) | | Track type | Rubber / Steel | | Track width | 400 mm | | Travel section | Crawler length | 2500 mm |
|---|
| Tumbler distance | 1990 mm | | Travel speed (1st/2nd gear) | 2.5/4.4 km / h | | Max. climbing angle | 30 deg | | Swing speed | 8.6 rpm | | Blade | Width | 1960 mm |
|---|
| Height | 360 mm | | Max. lift above ground/drop below ground | 455 / 375 mm | | Hydraulic pump type | Variable pump × 1
+ gear pump × 1 | | Swivel motor type | Hydraulic piston motor | | Travel motor type | Hydraulic piston motor: 2F | | Fuel tank capacity | 64 L |
- The company reserves the right to change the specifications without notice. The product information is for descriptive purpose only.
- Please contact your local Kubota dealer for warranty information. For complete operational information, the operator's manual should be consulted.
|
