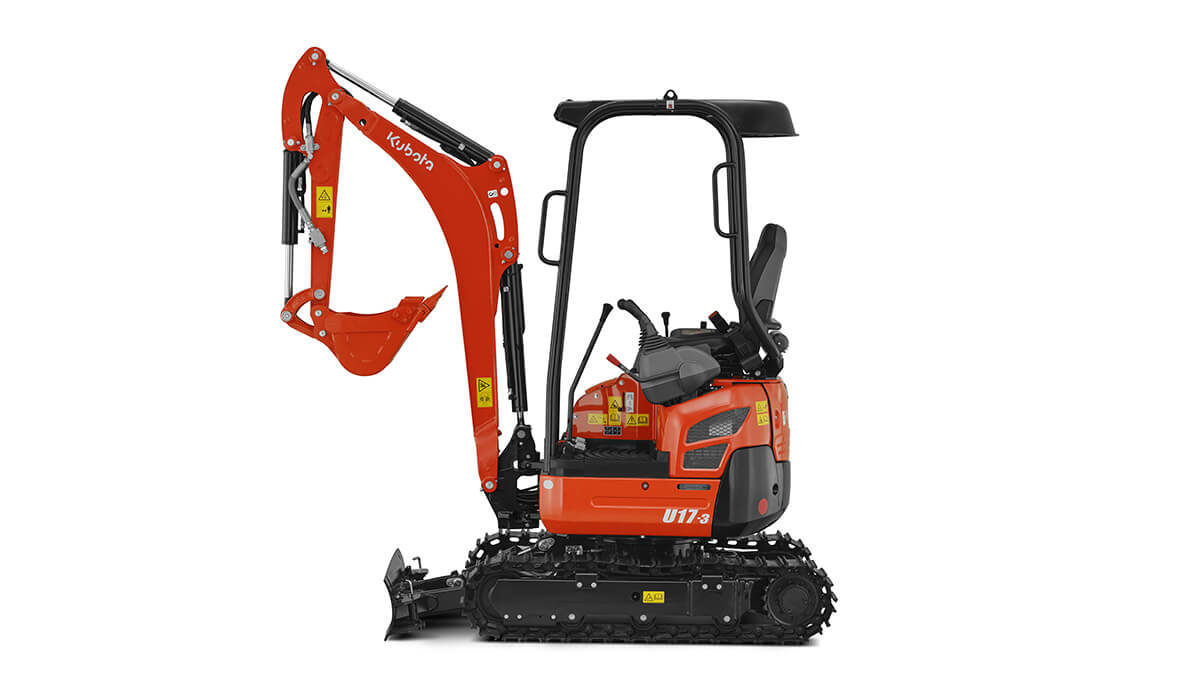

KUBOTA U17-3

High Grade Premium Mini Excavator U17-3

The Kubota U17-3 is the perfect mini-excavator for tackling jobs in the tightest of spaces. Powered by Kubota 16 HP engine, renowned worldwide for their outstanding reliability, the U17-3 delivers on superior maneuverability and maximum digging performance. This mini-excavator delivers the power you need, the control you want and the smoothest performance when you need it most.

HORSE POWER	DIGGING DEPTH	WEIGHT
16 HP	2310 MM	1725 KG

FEATURES

Powerful Engine

16HP engine provides sufficient power and reliability to your required job. In addition to its superior horsepower and performance, it also offers low noise, vibration level and exceptional fuel efficiency.

Digital Panel

Warning lamps with code numbers on the display will alert you in case of emergencies such as overheating, hydraulic problems or low battery. With easier access, simpler settings, easy-to-read indicators and alerts, you’ll always be aware of the excavator’s functioning status.

Auxiliary hydraulic system

Auxiliary hydraulic system accommodates to various of attachments, such as breaker and auger.

Pedal-operated boom swing

The pedal lets you operate boom swing easily.

Deluxe seat

The U17-3 deluxe seat increases productivity by providing optimum comfort for the operator.

12V electric power socket

It can use for jack as same as automobile cigarette lighter.

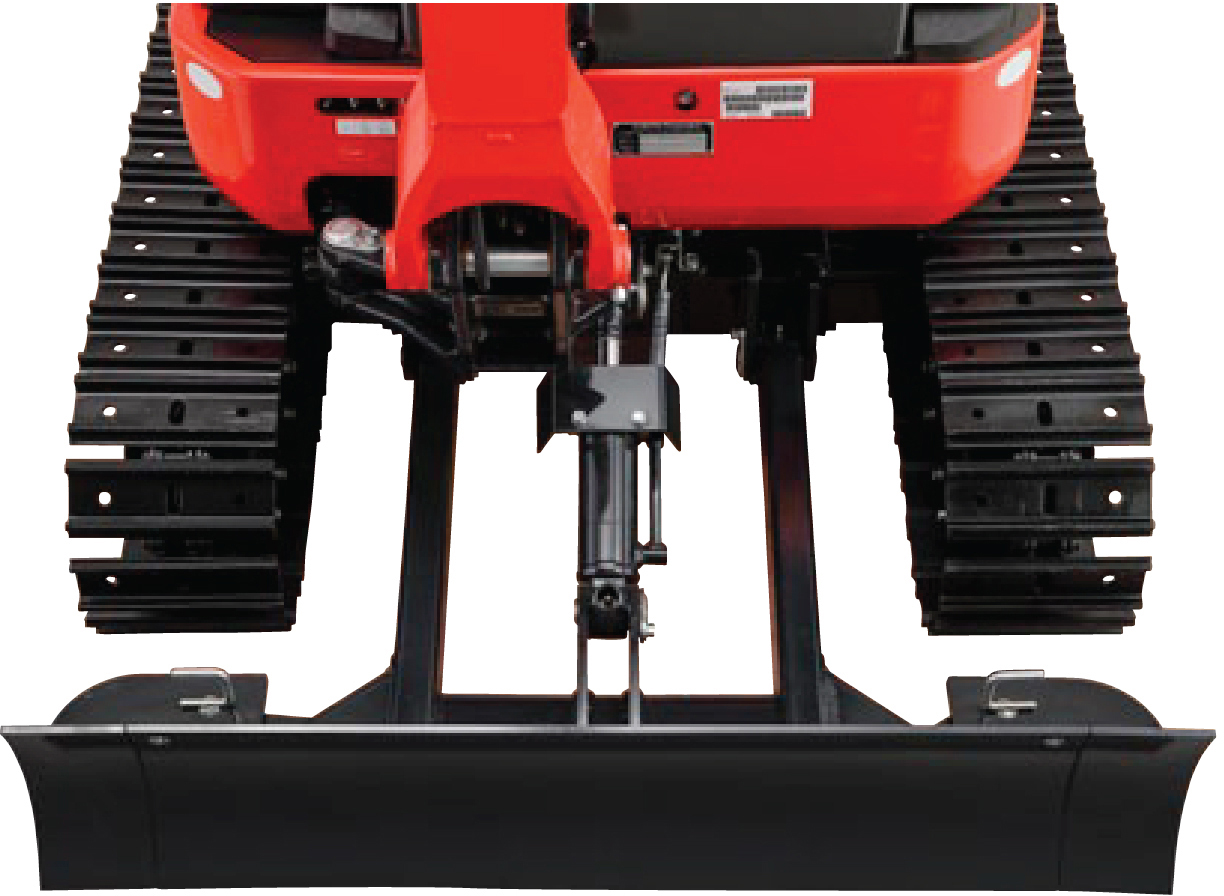

Variable Track Width

The U17-3 features a hydraulic track gauge that can be adjusted from 990mm to 1240mm. With the touch of a single lever, you can reduce the track gauge to navigate narrow spaces or increase it to improve functionality.

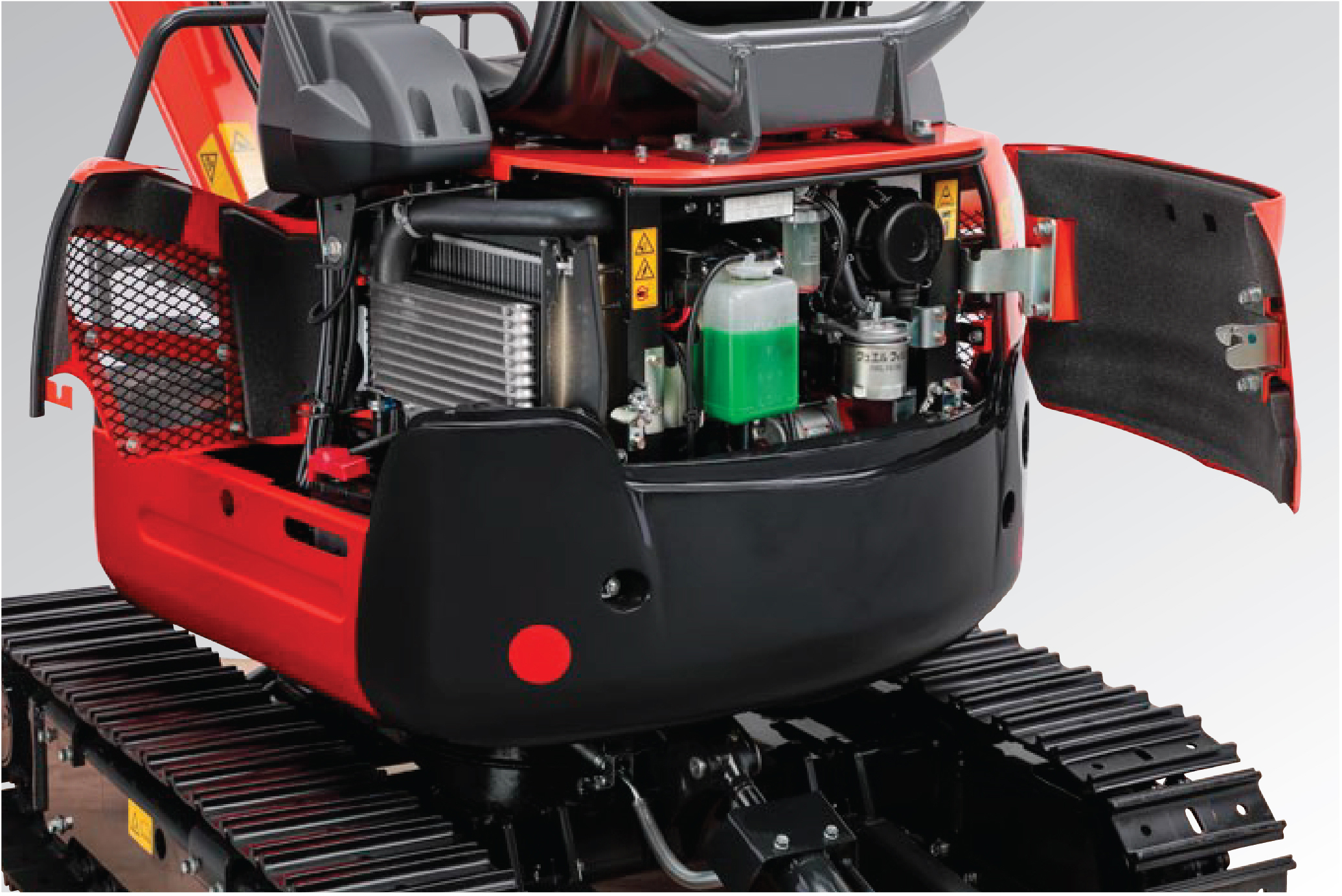

Wide Opening Bonnets

Wide-opening bonnets enable easy access to the engine oil gauge, coolant reserve tank and dual element air cleaner. It's easy to access to fuel filter, water separator, battery, radiator and oil coolant.

SPECIFICATION

MODEL
U17-3
BUCKET CAPACITY
0.04 m3
STD. BUCKET WIDTH: (with/without cutting blade)
450 / 400 mm
MACHINE WEIGHT
1725 kg
Operating weight (Including operator weight: 75kg)
1800 kg
Dimensions
(In transport condition)
Overall length
3545 mm
Overall height
2340 mm
Overall width
990 / 1240 mm
Min. ground clearance
150 mm
ENGINE
Model
Kubota D902-E3-BH-1
Total displacement
898 cc
Rated output (SAE J1995 gross) kW (HP) / rpm
12.0 (16.1) / 2300

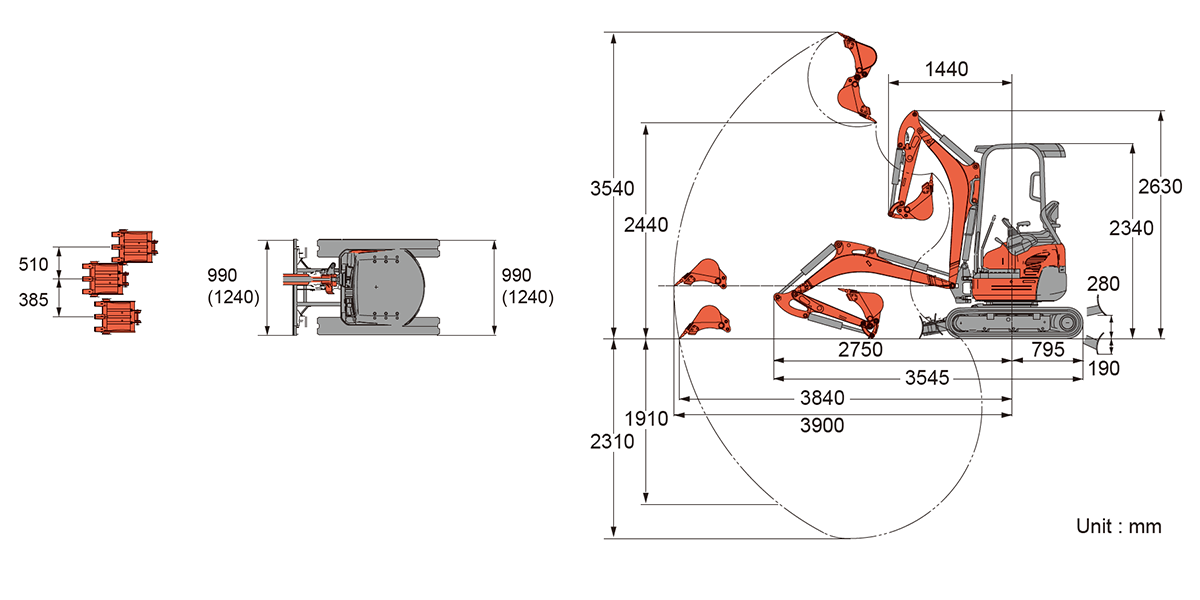

Working Range
Max. digging height
3540 mm
Max. dumping height
2440 mm
Max. digging depth
2310 mm
Max. vertical wall digging depth
1910 mm
Max. digging radius
3900 mm
Boom swing (left/right)
65 / 58 deg
Min. turning radius (with swing)
1440 (1210) mm
Min. tail turning radius
620 mm
Max. breakout force (bucket)
15.2 (1545) kN (kgf)
Track type
Steel
Track width
230 mm
Travel section
Crawler length
1585 mm
Tumbler distance
1230 mm
Travel speed (1st/2nd gear)
1.9 / 3.9
Max. climbing angle
30 deg
Swing speed
9.1 rpm
Blade
Width
990 / 1240 mm
Height
265 mm
Max. lift above ground/drop below ground
280 / 190 mm
Hydraulic pump type
Variable pump x 2
+ gear pump x 1
Swivel motor type
Orbit motor
Travel motor type
Hydraulic piston motor: 2F
Fuel tank capacity
19 L
The company reserves the right to change the specifications without notice. The product information is for descriptive purpose only.

Please contact your local Kubota dealer for warranty information. For complete operational information, the operator's manual should be consulted.
